☆2台セット！BROCADE ServerIron ADX1000 [SI-1216-4-PREM]！(#J4-328)「140サイズ」☆ 拍卖-51maijp【ymi.cn】

划词翻译上线，鼠标选择文字自动翻译,翻译内容仅供参考，如有疑问请咨询小觅翻译。

Zenmarket.jp - buying service from Japanese online stores recommended by seller

商品の説明

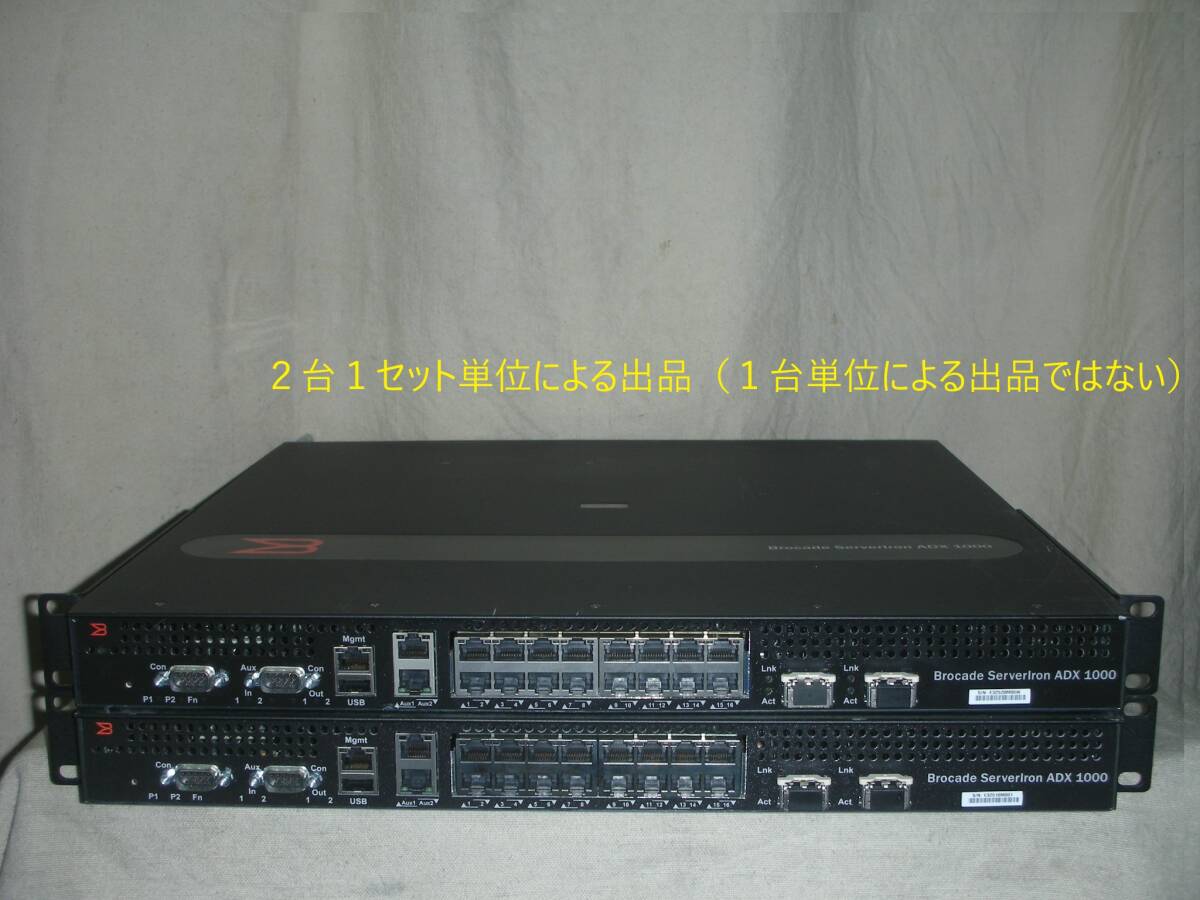

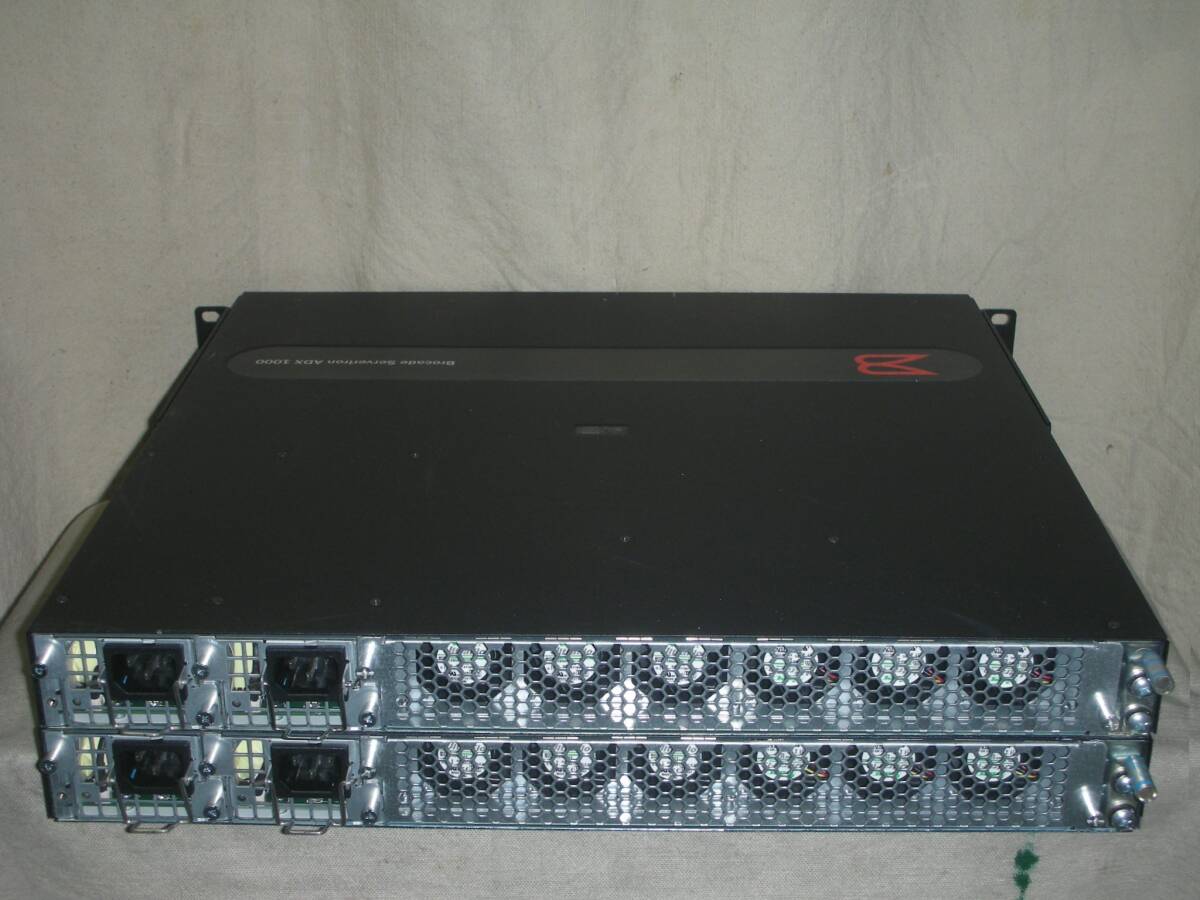

●商品名：BROCADE ServerIron ADX1000 [SI-1216-4-PREM] ×2台セット！(#J4-328)です。
●写真の通りの商品です。
●Password Recovery。多少の擦り傷あり。
●機器起動時は次の状態です。

 ServerIron Boot Code Version 12.5.0

Enter 'a' to stop at memory test
Enter 'b' to stop at boot monitor

BOOT INFO: load monitor from boot flash, cksum = 1348
BOOT INFO: verify flash files.....
BOOT INFO: load image from primary copy......

Brocade USB revision 2.0
Setting usb device address=1
Usb device information
  Jungo Generic Root Hub, class 9/0, rev 0.20/af.00, addr 1

Decompress!! proc_id 1, org 30220368, comp 6113127, i 0
Setting usb device address=3
Decompress!! proc_id 1, org 15254960, comp 4661177, i 1

mt_is_enabled: 0
mt_am_i_tenant: 0
mt_am_i_master: 0

Waiting for internal usb ready ......
Usb device information
  Philips Semiconductors ISP1520, class 9/0, rev 2.00/0.00, addr 3

Setting usb device address=4
USB disk information:
   Device name     : QDR4000CT1
   Device type     : 0
   Sector size     : 512 Bytes
   Sector count    : 7831552
   Disk size       : 3824MB
   Medium type     : 0
   Write protected : 0

Usb device information
  UNIGEN QDR4000CT1, class 0/0, rev 2.00/1.00, addr 4

USB FAT32 Caching took 3 seconds
    other_mp_present 0, this_mp_idx 0

mbridge_isr: installed
Redundant mgmt - got backplane type in early stage: 0x00000003
Redundant mgmt - not supported on stackable.
dob_hw_mod_1u_license_get_lc_type: 00000093, bcm profile: 3, g_1u_lic_id: 8
  1GC: 16, 1GF: 0, 10G: 2
backplane = 00000003

mbridge_isr: already enabled

fips Power on Self tests (POST) successful
INFO: building symbol table
INFO: last symbol addr: 21cd2050
Symol summary: count 147289, ave len 26, total 3943509

             : sub-counts: app 76588, C lib 70701, len0 0
  First Sym  : get_build_ver, addr 2001d7fc
  Last Sym   : __BSS_END, addr 26c48fb0
  Checker Sym: strcpy, addr 21ccb7e8
MSG: cu_load_sys_parameter-  using new specified values 4!!
dbgmsg: init_kmalloc called, heapID 0
dbgmsg: init_kmalloc called, heapID 1
SW init - module SI-1216-4-PREM in slot slot-lc...
SW init - module SI-1216-4-PREM in slot slot-mp...
SW init - module ServerIron 4BP App Switch Mod in slot slot-asm...
Parsing Config Data ...
     0       0     0       0     0       0     0       0     0       0
PAX mem[33554431]: 584238 31980543 97248 194544
Init multi binding. Table size =32000
real server: start=2c2eb000 size=00179b5c
virt server: start=2c465000 size=0008d2ac
port: start=2c4f3000 end=003db897
slow: start=2c8cf000 size=00003f44
grace: start=2c8d3000 size=00003f44

Allocate session delete queue (size=256000).
-----dob_reset_all_asms_and_pcies
Resetting slot slot-asm
Resetting pcie_init_asm 8
Downloading axp image to AXP0
config status before selecting fpga- 03f0d000
config status fpga selected- 03f0d010
Set fpga download reg - FPGA select bit
Wrote 2'b00 - 03f0d010
Wrote 2'b11 - 03f0d013
Wrote 2'b10 - 03b0c012
config status - 03f0c012
Image Size - 002fffbc
Finished downloading the image to the data reg
Done bits in the download register - 03f0d012
User Mode bits in the download register - 03f0d012
Enable bit should be cleared and idle bits selected - 03f0d000
Downloading PAX image to PAX
config status before selecting fpga- 03f0d000
config status fpga selected- 03f0d020
Set fpga download reg - FPGA select bit
Wrote 2'b00 - 03f0d020
Wrote 2'b11 - 03f0d023
Wrote 2'b10 - 0370d022
config status - 03f0d022
Image Size - 002fffbc
Finished downloading the image to the data reg
Done bits in the download register - 03f0f022
User Mode bits in the download register - 03f0f022
Enable bit should be cleared and idle bits selected - 03f0f000
HW init - slot slot-mp, mod_type SI-1216-4-PREM
PCIE1 as Root Complex (base address fc00a000).
pex init took 5475316 us

HW init - slot slot-asm, mod_type ServerIron 4BP App Switch Mod
Mapping BP sync PCIe addresses:
task_bringup_asm: started for ASM-1, with 4 BPs
ASM1 AXP0 sync[0] @ 0x80ffff00
task_bringup_asm: not a cold start param 8
ASM1 AXP1 sync[1] @ 0x80ffff38
HW init - slot slot-lc, mod_type SI-1216-4-PREM
slot-lc processor init..............START
Copied the bp image to address 80001000 succeeded
Copied the bp image to address 82001000 succeeded
Interrupt Connect: dev=46630, handler=0x21b0a7b4
SOC unit 0 attached to PCI device BCM56626_B2
Copied the bp image 1/1 to private memory
Copied the bp image 1/2 to private memory
Copied the bp image 1/3 to private memory
Copied the bp image 1/4 to private memory
Started the bp image 1/1
Started the bp image 1/2
Started the bp image 1/3
Started the bp image 1/4
mp_init_mipc: bp 8:2, tx_info = 0x82800000, rx_info = 0x790c0950
mp_init_mipc: bp 8:0, tx_info = 0x80800000, rx_info = 0x79000200
mp_init_mipc: bp 8:3, tx_info = 0x82c00000, rx_info = 0x79120cf8
mp_init_mipc: bp 8:1, tx_info = 0x80c00000, rx_info = 0x790605a8
bringup_bp got a msg type 5, asm 1 bp 1
bringup_bp got a msg type 5, asm 1 bp 3
bringup_bp got a msg type 5, asm 1 bp 2
bringup_bp got a msg type 5, asm 1 bp 4
All 4 BPs on slot-asm are ready
mark pcie access to ASM-1 up
task_bringup_system: got msg, type 1, par0 00000008, par1 00000000
Re-tuning TCAM interface on Unit 0
Unit 0 ..................OK
slot-lc processor init..............DONE
task_bringup_system: got msg, type 2, par0 00000000, par1 00000000
INFO: After reset #0 AXP0 XAUI link ok
System Startup Status:
        Slot     Done                      Bringup Err Module Statu
___________________________________________________________________
     slot-lc      Yes                               OK      RUNNING
     slot-mp      Yes                               OK      RUNNING
    slot-asm      Yes                               OK      RUNNING
       bp 1: BP App Ready
       bp 2: BP App Ready
       bp 3: BP App Ready
       bp 4: BP App Ready

curr_elog_count - 0 , del_elog_count - 0, num_elog_count - 0
AC Power Supply 1  is Installed (OK)
AC Power Supply 2  is Installed (OK)
INFO: fan tray 0 is detected.
INFO: fan tray 1 is detected.
INFO: fan tray 2 is detected.
INFO: fan tray 3 is detected.
INFO: fan tray 4 is detected.
INFO: fan tray 5 is detected.
INFO: fan tray 6 is detected.
INFO: fan tray 7 is detected.
INFO: fan tray 8 is detected.
INFO: fan tray 9 is detected.
INFO: Initialization done.
Crypto module initialization and Known Answer Test (KAT) Passed
Initializing IPC...
ASR module SCPUs at slot slot-asm are all up and running

Programing PAX base addresss...
slot=8 base_pcie_addr=89000000 hi=00000068 scpu=4
Program PAX of ASM 0 at addresses 0x89000000
PAX initialized
All ASR Modules Are Up (1)
INFO: g_timebase_units_per_sec= 74995000
Setting g_msec=74995  g_100msec=7499500
Copyright (c) 1996-2009 Brocade Communications Systems, Inc.
Boot Version 12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
Monitor Version 12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
System Version 12.5.02jT403 Aug 23 2016 21:59:54 PDT label: ASR12502j
AXP Version: 2.01 Dated: 2013/02/28 15:13:07
PAX Version: 8.7 Dated: 2012/02/28 17:04:52
MBRIDGE Version: 000b, Device ID # bebe

==========================================================================

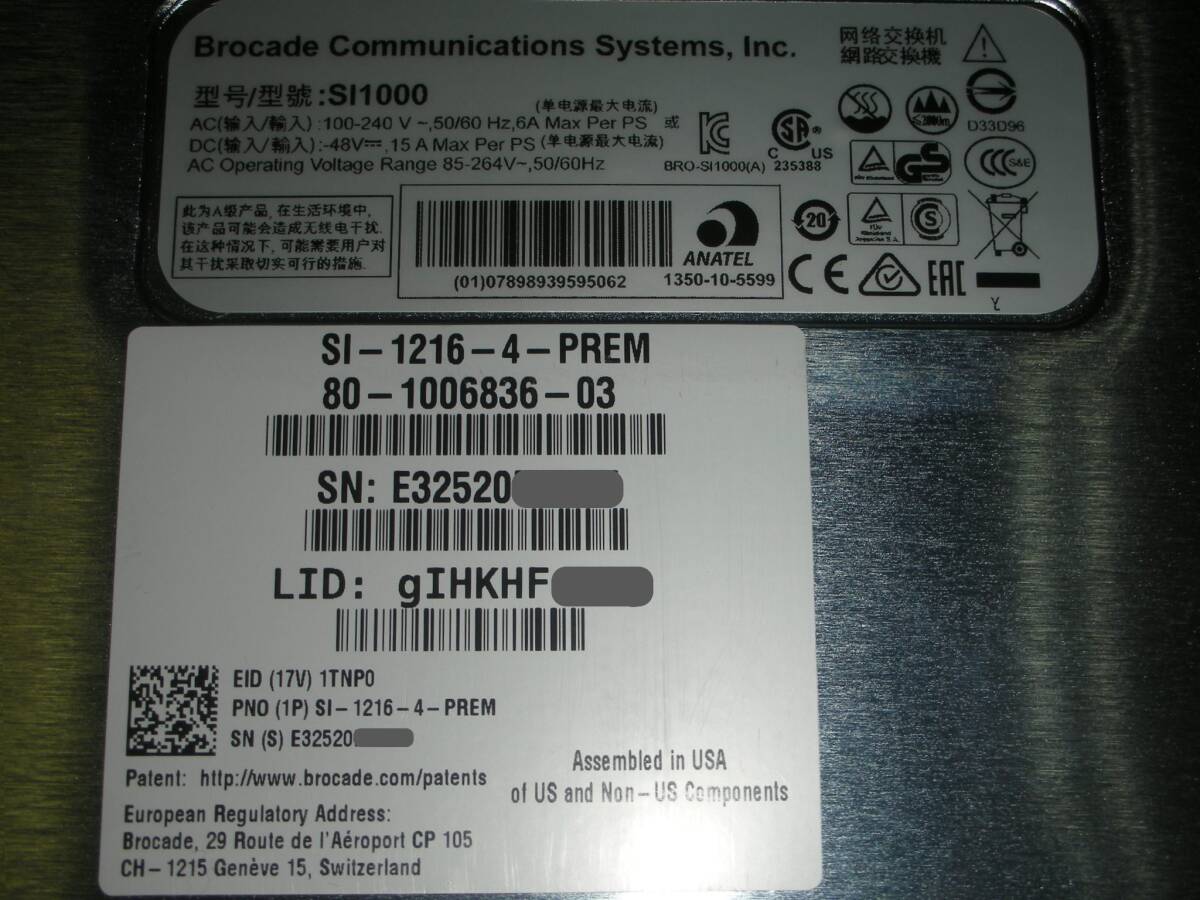

Type:   ServerIron ADX 1216-4-PREM
      Backplane Serial #:   E20332****
      Chassis Serial #:   E32510****
      LID #: gIHKGF****  License: SI-1216-4-PREM
      Multi-tenancy: Disabled
      Part #:   35723-005
      SSL Card - Serial #: 1F0334****       Part #: 40-1000373-02
      Version #: 13b626-05050505-111d8036-00
==========================================================================
Active management module:
       1499 MHz Power PC processor (SVR 2.2, PVR 8021/0030) 599 MHz bus
        512 KB Boot flash
      131072 KB Code flash
       2048 MB DRAM
The system uptime is 38 seconds
The system started at 20:13:17, GMT+00, Wed Feb 19 2025

The system - boot source: primary, mode: warm start,   soft reset, total resets:1

mt_is_enabled: 0
mt_am_i_tenant: 0
mt_am_i_master: 0

ServerIronADX 1000>
ServerIronADX 1000>
Downloading SSL profiles to BP..Done

Downloading ssl ocsp profiles to BP DHCPC: Config Initialized with protocol state = 0

ServerIronADX 1000>
ServerIronADX 1000>en
No password has been assigned yet...
ServerIronADX 1000#show version
Copyright (c) 1996-2009 Brocade Communications Systems, Inc.
Boot Version 12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
Monitor Version 12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
System Version 12.5.02jT403 Aug 23 2016 21:59:54 PDT label: ASR12502j
AXP Version: 2.01 Dated: 2013/02/28 15:13:07
PAX Version: 8.7 Dated: 2012/02/28 17:04:52
MBRIDGE Version: 000b, Device ID # bebe

==========================================================================
Type:   ServerIron ADX 1216-4-PREM
      Backplane Serial #:   E20332****
      Chassis Serial #:   E32510****
      LID #: gIHKGF****  License: SI-1216-4-PREM
      Multi-tenancy: Disabled
      Part #:   35723-005
      SSL Card - Serial #: 1F0334****       Part #: 40-1000373-02
      Version #: 13b626-05050505-111d8036-00
==========================================================================
Active management module:
       1499 MHz Power PC processor (SVR 2.2, PVR 8021/0030) 599 MHz bus
        512 KB Boot flash
      131072 KB Code flash
       2048 MB DRAM
The system uptime is 1 minutes 6 seconds
The system started at 20:13:17, GMT+00, Wed Feb 19 2025

The system - boot source: primary, mode: warm start,   soft reset, total resets:1
ServerIronADX 1000#show chassis
Boot Prom MAC: 748e.f8cc.ba80
Type:   SI-1216-4-PREM
      Serial #:   E32510****
=================================
Fan and Power Supply Status
=================================
Fan 1 - STATUS: OK SPEED: HI(RPM 8012)
Fan 2 - STATUS: OK SPEED: MED-HI(RPM 7804)
Fan 3 - STATUS: OK SPEED: HI(RPM 8178)
Fan 4 - STATUS: OK SPEED: MED-HI(RPM 7853)
Fan 5 - STATUS: OK SPEED: HI(RPM 8029)
Fan 6 - STATUS: OK SPEED: MED-HI(RPM 7747)
Power 1 (Part#: 3I50    Serial#:P13115****   Brocade Part#:32034002) (AC 504W)
      Firmware Ver#: 42. 1: Installed (OK)
Power 2 (Part#: 3I50    Serial#:P13015****   Brocade Part#:32034002) (AC 504W)
      Firmware Ver#: 42. 1: Installed (OK)
Total power budget for system = 1008 W
===============================
Temperatures per Module
===============================
Management CPU Temp: 45 deg C
BP 1 Temp: 54 deg C
BP 2 Temp: 47 deg C
AXP Temp: 38 deg C
PAX Temp: 33 deg C
Warning level : 95 C degrees, shutdown level : 110 C degrees
ServerIronADX 1000#show interface brief

Port  Link State     Dupl Speed Trunk Tag Priori MAC            Name
1     Down None      None None  None  No  level0 748e.f8cc.ba80
2     Down None      None None  None  No  level0 748e.f8cc.ba81
3     Down None      None None  None  No  level0 748e.f8cc.ba82
4     Down None      None None  None  No  level0 748e.f8cc.ba83
5     Down None      None None  None  No  level0 748e.f8cc.ba84
6     Down None      None None  None  No  level0 748e.f8cc.ba85
7     Down None      None None  None  No  level0 748e.f8cc.ba86
8     Down None      None None  None  No  level0 748e.f8cc.ba87
9     Down None      None None  None  No  level0 748e.f8cc.ba88
10    Down None      None None  None  No  level0 748e.f8cc.ba89
11    Down None      None None  None  No  level0 748e.f8cc.ba8a
12    Down None      None None  None  No  level0 748e.f8cc.ba8b
13    Down None      None None  None  No  level0 748e.f8cc.ba8c
14    Down None      None None  None  No  level0 748e.f8cc.ba8d
15    Down None      None None  None  No  level0 748e.f8cc.ba8e
16    Down None      None None  None  No  level0 748e.f8cc.ba8f
17    Down None      None None  None  No  level0 748e.f8cc.ba90
18    Down None      None None  None  No  level0 748e.f8cc.ba91
mgmt1 Down None      None None  None  No  level0 748e.f8cc.ba80
ServerIronADX 1000#
ServerIronADX 1000#
ServerIronADX 1000#show short-tech
Tech Support Info
Time: 20:15:36, GMT+00, Wed Feb 19 2025


!Building configuration...
!Current configuration : 270 bytes
!
ver      12.5.02jT403
!
context default
!
!
!

source-ip-log

eventlog size 256
aaa authentication web-server default local
no enable aaa console
telnet server
username admin password .....
no web-management ui-history-collect
!
end

Copyright (c) 1996-2009 Brocade Communications Systems, Inc.
Boot Version 12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
Monitor Version 12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
System Version 12.5.02jT403 Aug 23 2016 21:59:54 PDT label: ASR12502j
AXP Version: 2.01 Dated: 2013/02/28 15:13:07
PAX Version: 8.7 Dated: 2012/02/28 17:04:52
MBRIDGE Version: 000b, Device ID # bebe

【以下略】
ServerIronADX 1000#

●使用されていた商品ですが、全機能を検証する環境が無い為、それ以上の動作は未確認です。
●「電源が入らない」以外は、現状・ノークレーム扱いでの出品とさせて頂きます。
●電源ケーブル等、付属品は一切ありません。
●写真をご参照の上、ご入札のほど、宜しくお願いします。
●送料は下記の「140サイズ」（2台1セットあたり）となります。
●運輸業者は当方で決めさせていただきます。
●上記の発送サイズは2台1セットの場合です。複数同時発送の場合の送料はこちらからご連絡いたします。
●中古のダンボールを使用する事より実際の発送サイズが異なる場合がございます。ご了承下さいませ。
●東京都江戸川区西一之江の倉庫にてのお渡しも可能です。
●その場合は、無梱包お渡しとなります。
●営業時間は月曜日～金曜日、AM10:00～PM18:00となります。
●第1.3.5土曜日のみ、11:00～15:00に限り、営業致します。
●第2.4土曜日・日曜日・祝日は休みになります。
●こちらからのご連絡は平日昼間のみとなります。
●また、お取引後の評価ですが不要のお客様が多い為にこちらからは入れておりません。
●評価が必要なお客様は取引メッセージにてのご連絡をお願い致します。

●特定商取法の表示

【送料料金表】

北海道

北東北

南東北

関東

信越

北陸

中部

関西

中国

四国

九州

沖縄

地域詳細

北海道

青森
岩手
秋田

宮城
山形
福島

茨城
栃木
群馬
埼玉
千葉
東京
神奈川
山梨

新潟
長野

富山
石川
福井

静岡
愛知
三重
岐阜

滋賀
京都
大阪
兵庫
奈良
和歌山

鳥取
島根
岡山
広島
山口

徳島
香川
愛媛
高知

福岡
佐賀
長崎
熊本
大分
宮崎
鹿児島

沖縄
離島

60サイズ・2kgまで

1,460円

1,060円

940円

1,060円

1,190円

1,460円

80サイズ・5kgまで

1,740円

1,350円

1,230円

1,350円

1,480円

1,740円

2,070円

100サイズ・10kg まで

2,050円

1,650円

1,530円

1,650円

1,790円

2,050円

2,710円

120サイズ・15kgまで

2,370円

1,970円

1,850円

1,970円

2,110円

2,370円

3,360円

140サイズ・20kgまで

2,710円

2,310円

2,190円

2,310円

2,450円

2,710円

4,030円

160サイズ・25kgまで

3,030円

2,630円

2,510円

2,630円

2,770円

3,030円

4,680円

令和5年4月3日よりのヤマト運輸送料です。

正在加载数据，请稍后……

点击查看，竞拍常见问题 >

有道翻译┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈

出价竞拍

预约出价

直接购买

会员等级说明
