●商品名：Cisco NEXUS 9300 [N9K-C93180YC-EX V04] ×2台セット！(#J0-501)です。

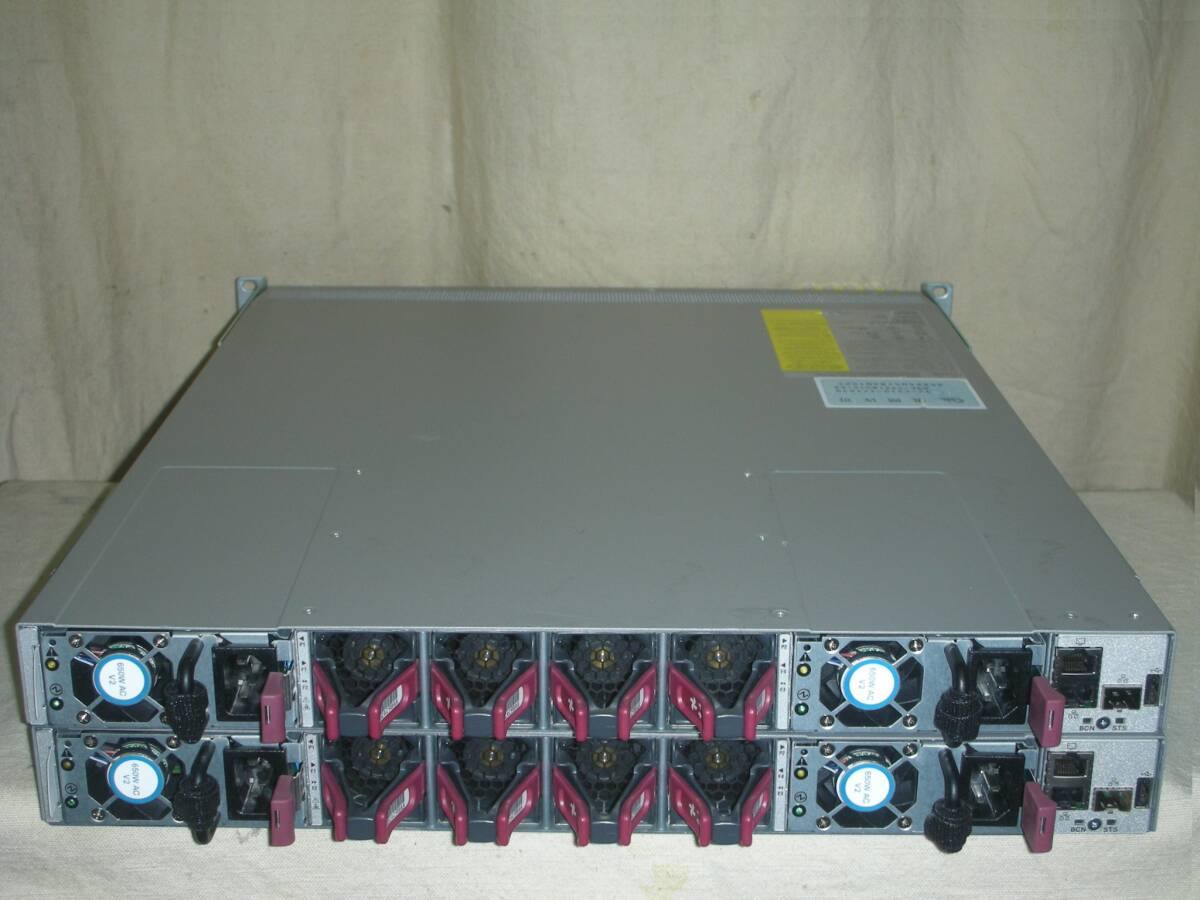

●写真の通りの商品です。
●Login：admin／Password：Passwordnexus93180 仮設定。
●2台で、10Gb SFP Transceiver×6個+1000Base-T Transceiver×18個を実装しています。
●多少の擦り傷・ステッカーに痛みあり。
●機器起動時は次の状態です。
User Access Verification
Switch login: admin
Password:
Cisco Nexus Operating System (NX-OS) Software
TAC support: https://www.cisco.com/tac
Copyright (C) 2002-2018, Cisco and/or its affiliates.
All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under their own
licenses, such as open source. This software is provided "as is," and unless
otherwise stated, there is no warranty, express or implied, including but not
limited to warranties of merchantability and fitness for a particular purpose.
Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or
GNU General Public License (GPL) version 3.0 or the GNU
Lesser General Public License (LGPL) Version 2.1 or
Lesser General Public License (LGPL) Version 2.0.
A copy of each such license is available at
https://www.opensource.org/licenses/gpl-2.0.php and
https://opensource.org/licenses/gpl-3.0.html and
https://www.opensource.org/licenses/lgpl-2.1.php and
https://www.gnu.org/licenses/old-licenses/library.txt.
Switch#
Switch# show version
Cisco Nexus Operating System (NX-OS) Software
TAC support: https://www.cisco.com/tac
Copyright (C) 2002-2018, Cisco and/or its affiliates.
All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under their own
licenses, such as open source. This software is provided "as is," and unless
otherwise stated, there is no warranty, express or implied, including but not
limited to warranties of merchantability and fitness for a particular purpose.
Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or
GNU General Public License (GPL) version 3.0 or the GNU
Lesser General Public License (LGPL) Version 2.1 or
Lesser General Public License (LGPL) Version 2.0.
A copy of each such license is available at
https://www.opensource.org/licenses/gpl-2.0.php and
https://opensource.org/licenses/gpl-3.0.html and
https://www.opensource.org/licenses/lgpl-2.1.php and
https://www.gnu.org/licenses/old-licenses/library.txt.
Software
BIOS: version 07.65
NXOS: version 7.0(3)I7(4)
BIOS compile time: 09/04/2018
NXOS image file is: bootflash:///nxos.7.0.3.I7.4.bin
NXOS compile time: 6/14/2018 2:00:00 [06/14/2018 18:49:04]
Hardware
cisco Nexus9000 93180YC-EX chassis
Intel(R) Xeon(R) CPU @ 1.80GHz with 24633488 kB of memory.
Processor Board ID FDO2316****
Device name: Switch
bootflash: 53298520 kB
Kernel uptime is 0 day(s), 0 hour(s), 2 minute(s), 28 second(s)
Last reset at 642941 usecs after Wed Sep 17 13:57:49 2025
Reason: Reset Requested by CLI command reload
System version: 7.0(3)I7(4)
Service:
plugin
Core Plugin, Ethernet Plugin
Active Package(s):
Switch# show license usage
Feature Ins Lic Status Expiry Date Comments
Count
--------------------------------------------------------------------------------
N9K_LIC_1G No - Unused -
VPN_FABRIC No - Unused -
FCOE_NPV_PKG No - Unused -
SECURITY_PKG No 0 Unused -
N9K_UPG_EX_10G No - Unused -
TP_SERVICES_PKG No - Unused -
NXOS_ADVANTAGE_GF No - Unused -
NXOS_ADVANTAGE_M4 No - Unused -
NXOS_ADVANTAGE_XF No - Unused -
NXOS_ESSENTIALS_GF No - Unused -
NXOS_ESSENTIALS_M4 No - Unused -
NXOS_ESSENTIALS_XF No - Unused -
SAN_ENTERPRISE_PKG No - Unused -
PORT_ACTIVATION_PKG No 0 Unused -
NETWORK_SERVICES_PKG No - Unused -
NXOS_ADVANTAGE_M8-16 No - Unused -
NXOS_ESSENTIALS_M8-16 No - Unused -
FC_PORT_ACTIVATION_PKG No 0 Unused -
LAN_ENTERPRISE_SERVICES_PKG No - Unused -
--------------------------------------------------------------------------------
Switch# show inventory
NAME: "Chassis", DESCR: "Nexus9000 93180YC-EX chassis"
PID: N9K-C93180YC-EX , VID: V04 , SN: FDO2316****
NAME: "Slot 1", DESCR: "48x10/25G + 6x40/100G Ethernet Module"
PID: N9K-C93180YC-EX , VID: V04 , SN: FDO2316****
NAME: "Power Supply 1", DESCR: "Nexus9000 93180YC-EX chassis Power Supply"
PID: NXA-PAC-650W-PI , VID: V03 , SN: LIT2251****
NAME: "Power Supply 2", DESCR: "Nexus9000 93180YC-EX chassis Power Supply"
PID: NXA-PAC-650W-PI , VID: V03 , SN: LIT2251****
NAME: "Fan 1", DESCR: "Nexus9000 93180YC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
NAME: "Fan 2", DESCR: "Nexus9000 93180YC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
NAME: "Fan 3", DESCR: "Nexus9000 93180YC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
NAME: "Fan 4", DESCR: "Nexus9000 93180YC-EX chassis Fan Module"
PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
Switch# show environment
Fan:
---------------------------------------------------------------------------
Fan Model Hw Direction Status
---------------------------------------------------------------------------
Fan1(sys_fan1) NXA-FAN-30CFM-B -- front-to-back Ok
Fan2(sys_fan2) NXA-FAN-30CFM-B -- front-to-back Ok
Fan3(sys_fan3) NXA-FAN-30CFM-B -- front-to-back Ok
Fan4(sys_fan4) NXA-FAN-30CFM-B -- front-to-back Ok
Fan_in_PS1 -- -- front-to-back Ok
Fan_in_PS2 -- -- front-to-back Ok
Fan Zone Speed: Zone 1: 0x80
Fan Air Filter : NotSupported
Power Supply:
Voltage: 12 Volts
Power Actual Actual Total
Supply Model Output Input Capacity Status
(Watts ) (Watts ) (Watts )
------- ---------- --------------- ------ ---------- --------------------
1 NXA-PAC-650W-PI 65 W 79 W 650 W Ok
2 NXA-PAC-650W-PI 64 W 76 W 650 W Ok
Power Usage Summary:
--------------------
Power Supply redundancy mode (configured) PS-Redundant
Power Supply redundancy mode (operational) PS-Redundant
Total Power Capacity (based on configured mode) 650.00 W
Total Grid-A (first half of PS slots) Power Capacity 650.00 W
Total Grid-B (second half of PS slots) Power Capacity 650.00 W
Total Power of all Inputs (cumulative) 1300.00 W
Total Power Output (actual draw) 129.00 W
Total Power Input (actual draw) 155.00 W
Total Power Allocated (budget) N/A
Total Power Available for additional modules N/A
Temperature:
--------------------------------------------------------------------
Module Sensor MajorThresh MinorThres CurTemp Status
(Celsius) (Celsius) (Celsius)
--------------------------------------------------------------------
1 FRONT 70 42 32 Ok
1 BACK 80 70 37 Ok
1 CPU 90 80 45 Ok
1 Sugarbowl 100 90 57 Ok
Switch# show interface transceiver
Ethernet1/1
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2318****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/2
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2318****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/3
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2318****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/4
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2318****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/5
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2318****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/6
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2318****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/7
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2309****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/8
transceiver is not present
Ethernet1/9
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2309****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/10
transceiver is present
type is 1000base-T
name is CISCO
part number is SBCU-5740ARZ-CS1
revision is G3.1
serial number is AVC2309****
nominal bitrate is 1300 MBit/sec
Link length supported for copper is 100 m
cisco id is 3
cisco extended id number is 4
cisco part number is 30-1475-01
cisco product id is GLC-TE
Ethernet1/11
transceiver is not present
【略】
Ethernet1/32
transceiver is not present
Ethernet1/33
transceiver is present
type is 10Gbase-SR
name is CISCO-FINISAR
part number is FTLX8574D3BCL-CS
revision is A
serial number is FNS2304****
nominal bitrate is 10300 MBit/sec
Link length supported for 50/125um OM2 fiber is 82 m
Link length supported for 62.5/125um fiber is 26 m
Link length supported for 50/125um OM3 fiber is 300 m
cisco id is 3
cisco extended id number is 4
cisco part number is 10-2415-03
cisco product id is SFP-10G-SR
Ethernet1/34
transceiver is present
type is 10Gbase-SR
name is CISCO-FINISAR
part number is FTLX8574D3BCL-CS
revision is A
serial number is FNS2304****
nominal bitrate is 10300 MBit/sec
Link length supported for 50/125um OM2 fiber is 82 m
Link length supported for 62.5/125um fiber is 26 m
Link length supported for 50/125um OM3 fiber is 300 m
cisco id is 3
cisco extended id number is 4
cisco part number is 10-2415-03
cisco product id is SFP-10G-SR
Ethernet1/35
transceiver is present
type is 10Gbase-SR
name is CISCO-FINISAR
part number is FTLX8574D3BCL-CS
revision is A
serial number is FNS2304****
nominal bitrate is 10300 MBit/sec
Link length supported for 50/125um OM2 fiber is 82 m
Link length supported for 62.5/125um fiber is 26 m
Link length supported for 50/125um OM3 fiber is 300 m
cisco id is 3
cisco extended id number is 4
cisco part number is 10-2415-03
cisco product id is SFP-10G-SR
Ethernet1/36
transceiver is not present
【略】
Ethernet1/54
transceiver is not present
Switch#
●使用されていた商品ですが、全機能を検証する環境が無い為、それ以上の動作は未確認です。
●「電源が入らない」以外は、現状・ノークレーム扱いでの出品とさせて頂きます。

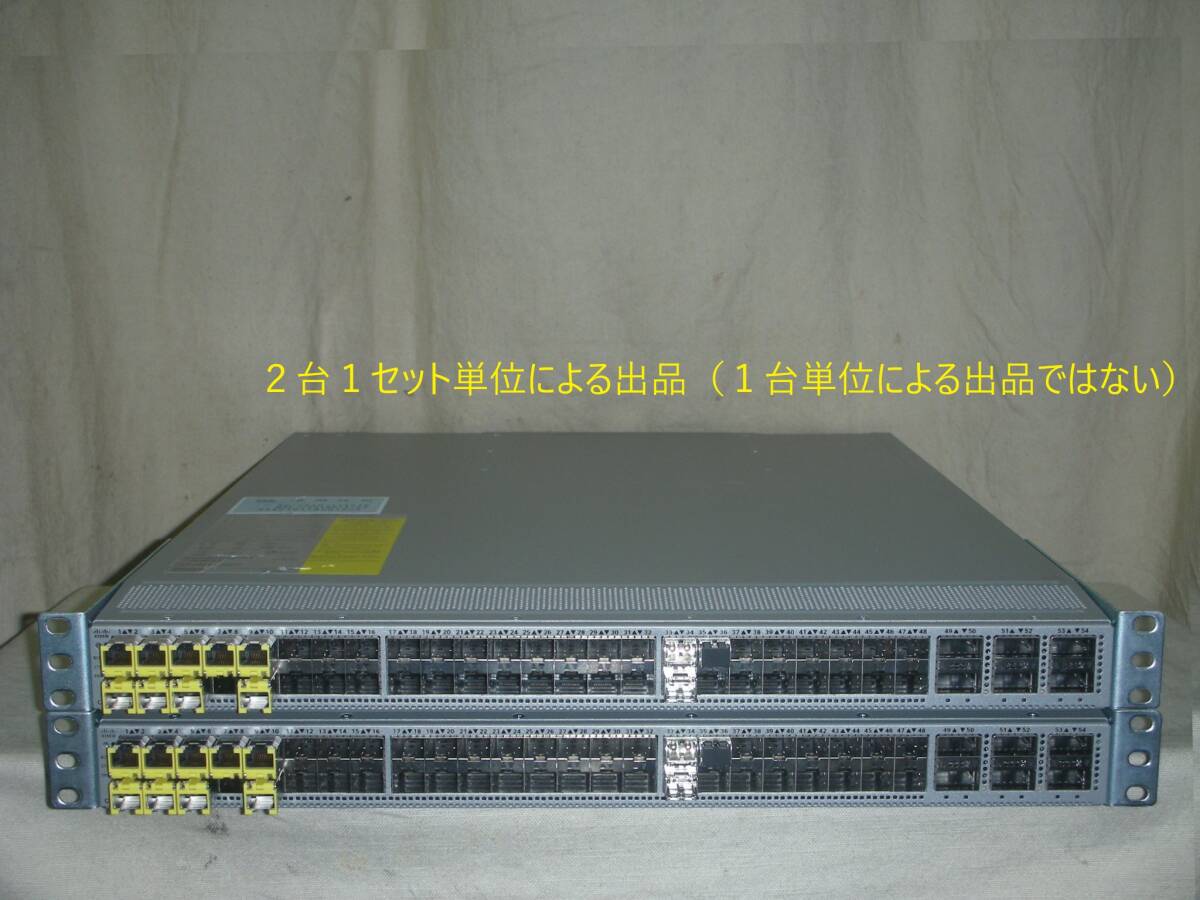

●出品は、写真の商品×2台のみ、です。電源ケーブル等、その他の付属品は何もありません。
●写真をご参照の上、ご入札のほど、宜しくお願いします。
●送料は下記の「160サイズ」（2台1セットあたり）となります。
●運輸業者は当方で決めさせていただきます。
●上記の発送サイズは2台1セットの場合です。複数同時発送の場合の送料はこちらからご連絡いたします。
●中古のダンボールを使用する事より実際の発送サイズが異なる場合がございます。ご了承下さいませ。
●東京都江戸川区西一之江の倉庫にてのお渡しも可能です。
●その場合は、無梱包お渡しとなります。
●営業時間は月曜日～金曜日、AM10:00～PM18:00となります。
●第1.3.5土曜日のみ、11:00～15:00に限り、営業致します。
●第2.4土曜日・日曜日・祝日は休みになります。
●こちらからのご連絡は平日昼間のみとなります。
●また、お取引後の評価ですが不要のお客様が多い為にこちらからは入れておりま
せん。
●評価が必要なお客様は取引メッセージにてのご連絡をお願い致します。
|
![☆2台セット！Cisco NEXUS 9300 [N9K-C93180YC-EX V04]！(#J0-501)「160サイズ」☆ 拍卖](http://yahooimg2.ymibuy.cn/i/auctions.c.yimg.jp/images.auctions.yahoo.co.jp/image/dr000/auc0109/user/40897b8a5350d507c506e436ed848f2b357773739c6b9e0a27ce9d27f66f480d/i-img1200x900-17583544659927rfi57666983.jpg)
![{$data['title']拍卖](http://yahooimg2.ymibuy.cn/i/auctions.c.yimg.jp/images.auctions.yahoo.co.jp/image/dr000/auc0109/user/40897b8a5350d507c506e436ed848f2b357773739c6b9e0a27ce9d27f66f480d/i-img900x1200-1758354468288295mnfy43505.jpg)
![{$data['title']拍卖](http://yahooimg2.ymibuy.cn/i/auctions.c.yimg.jp/images.auctions.yahoo.co.jp/image/dr000/auc0109/user/40897b8a5350d507c506e436ed848f2b357773739c6b9e0a27ce9d27f66f480d/i-img1200x900-17583544703496jyioql9845.jpg)
