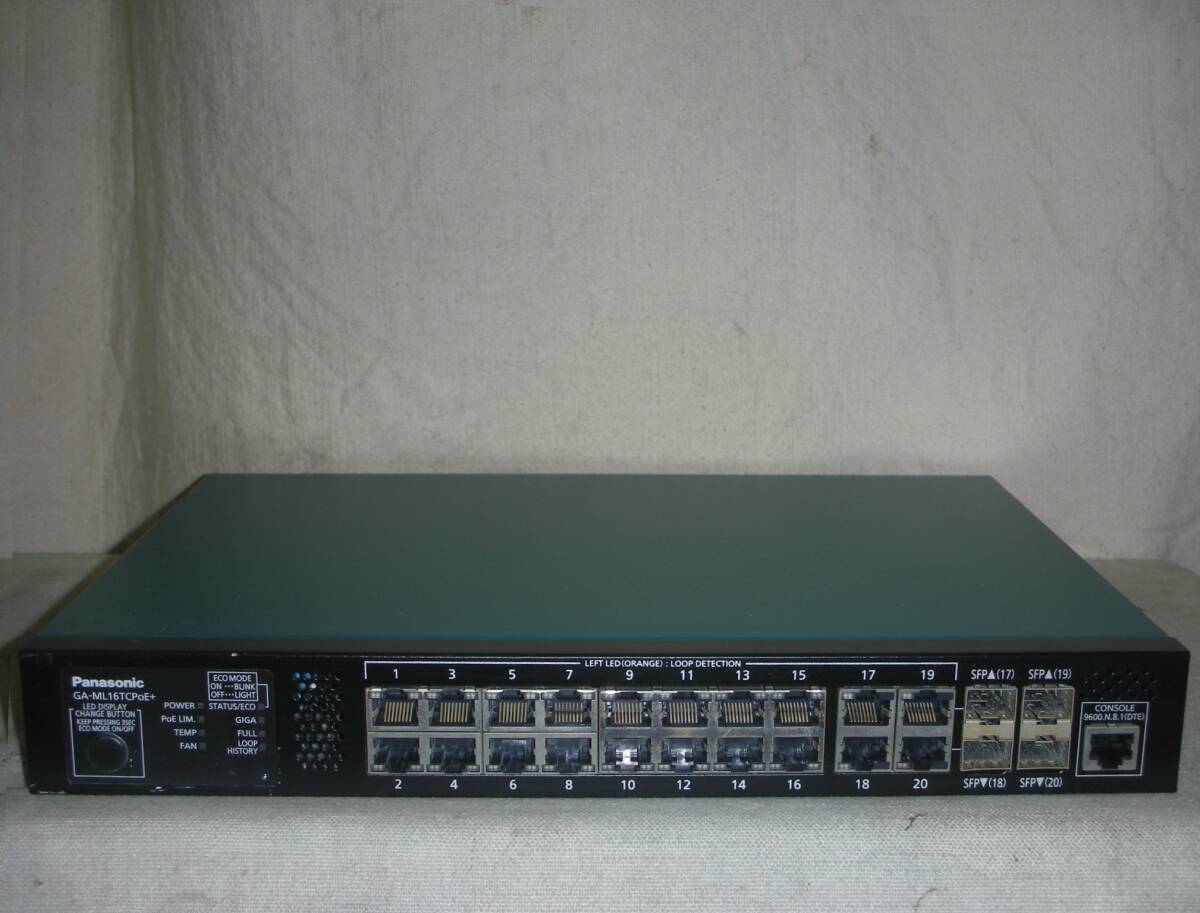

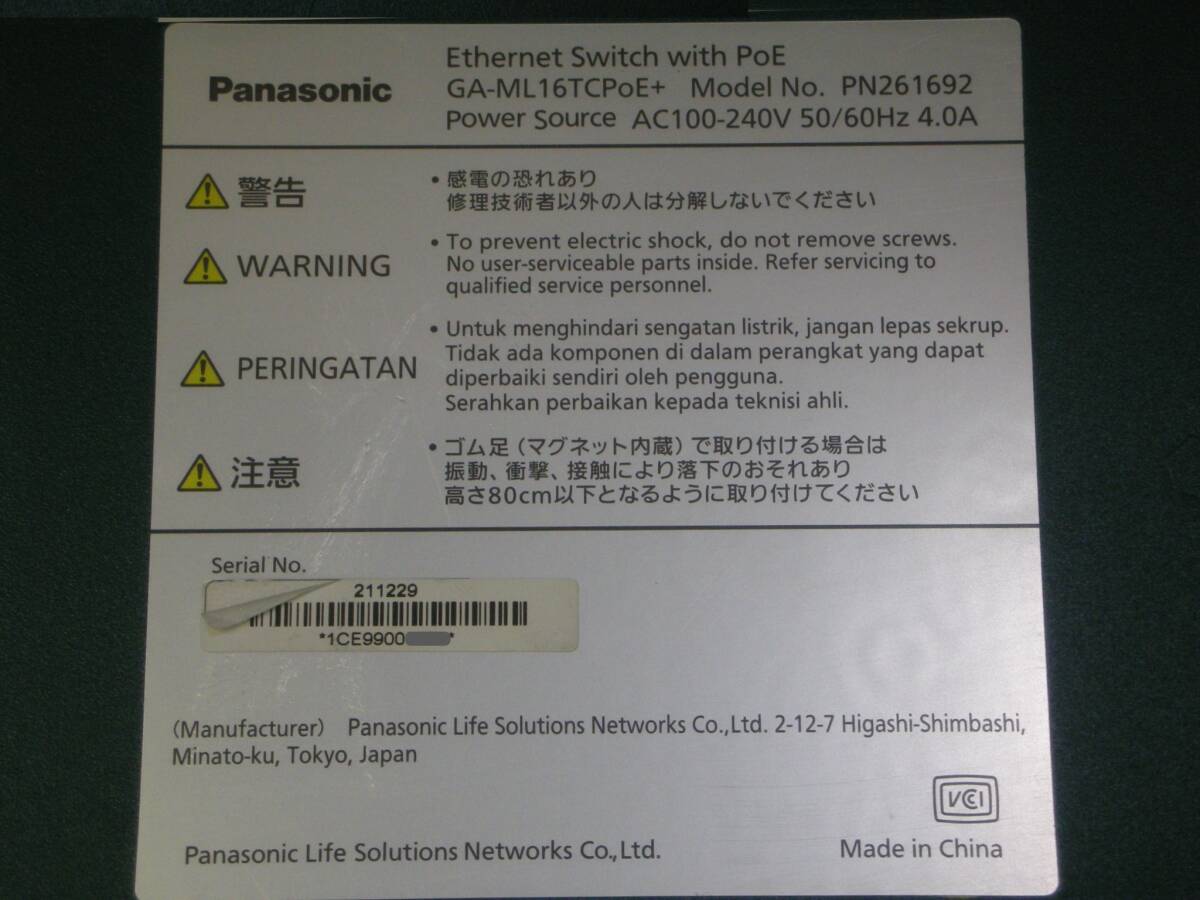

●商品名：Panasonic GA-ML16TCPoE+ [PN261692] です(#J7-309)。
●写真の通りの商品です。
●Login: manager、Password: manager。廃熱ファン×1個がNGです。

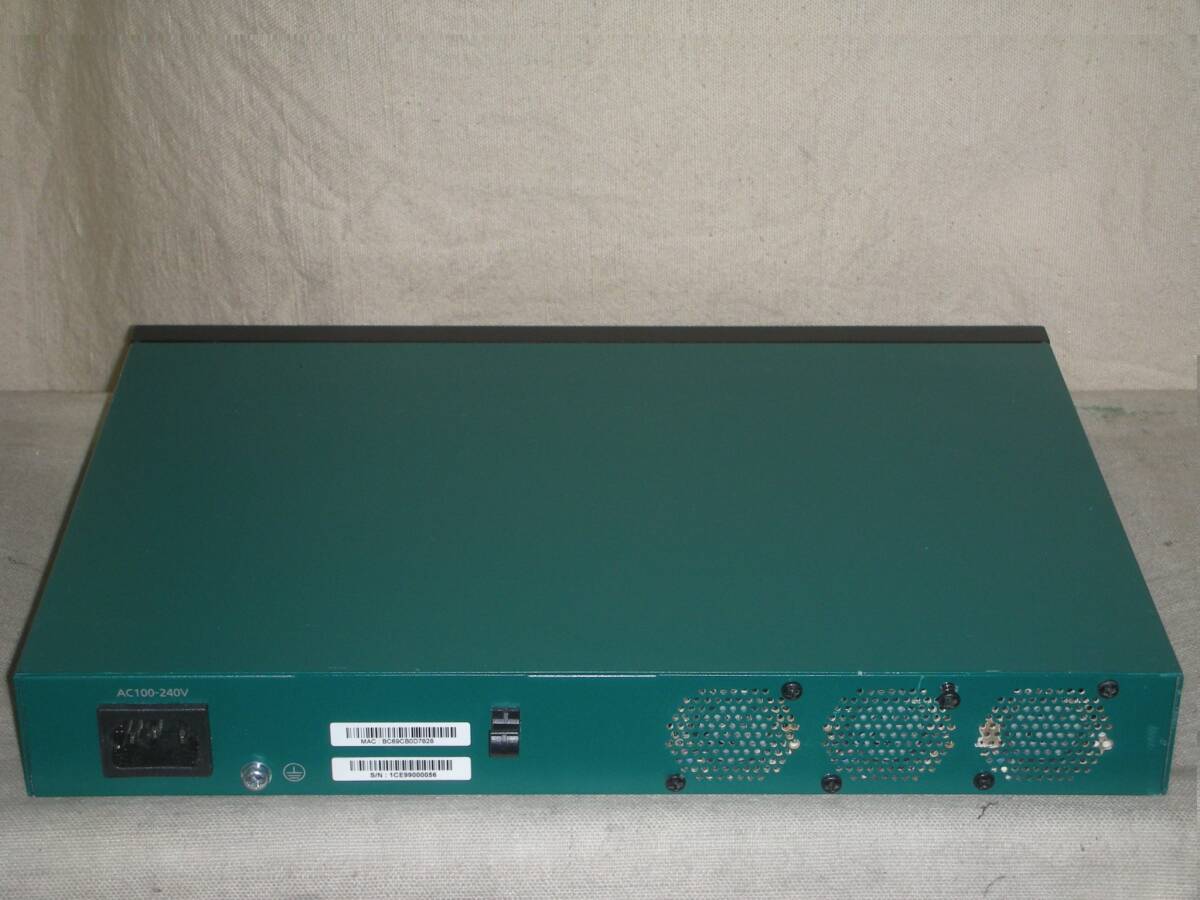

●廃熱口にやや痛みあり。多少の擦り傷あり。
●機器起動時は次の状態です。
U-Boot 2016.01- (Jul 24 2019 - 10:47:24 +0800)
I2C: ready
DRAM: Reset XGPLL
Release reset
Polling
Locked
DEV ID = 0x8442
SKU ID = 0x8442
DDR type: DDR4, 16 bits mode
MEMC 0 DDR speed = 800MHz
PHY revision version: 0x00a2f001
ddr_init2: Calling soc_and28_shmoo_dram_info_set
ddr_init2: Calling soc_and28_shmoo_phy_init
A Series - PHY Initialization (PHY index: 00)
A01. Turn off CKE
A02. Configure timing parameters
A03. Configure PHY PLL
PHY PLL Configuration
Fref.............: 50 MHz
Data rate........: 1600 Mbps
PLL locked.
A04. Configure reference voltage
A05. Compute VDL step size
VDL calibration complete.
VDL step size....: 10.245 ps
UI size..........: 61.000 steps
A06. Configure ADDR/CTRL VDLs
A07. Disable Virtual VTT
A08. ZQ calibration
P drive..........: 0x0C
N drive..........: 0x12
P termination....: 0x0C
N termination....: 0x00
P idle...........: 0x0C
N idle...........: 0x00
AQ P drive.......: 0x12
AQ N drive.......: 0x12
A09. Configure Static Pad Control
A10. Configure ODT
A11. Configure Write Pre-/Post-amble
A12. Configure Auto Idle
A13. Release PHY control
A Series - PHY Initialization complete (PHY index: 00)
Programming controller register
Enabling mt40a512m8_093_1600
ddr_init2: MemC initialization complete
ddr_init2: Calling soc_and28_shmoo_ctl
Validate Shmoo parameters stored in flash ..... OK
Press Ctrl-C to run Shmoo ..... skipped
DDR Tuning Complete
Running simple memory test ..... OK
DDR Interface Ready
512 MiB
arm_clk=1250MHz, axi_clk=400MHz, apb_clk=100MHz, arm_periph_clk=625MHz
Flash: 0 Bytes
NAND: PNOR flash is not present - switch mux back for NAND
(ONFI), W29N01HV , blocks per lun: 400 lun count: 1
128 KiB blocks, 2 KiB pages, 16B OOB, 8-bit
NAND: chipsize 128 MiB
SF: Detected MX25L25635F with page size 256 Bytes, erase size 64 KiB, total 32 MiB
In: serial
Out: serial
Err: serial
DDR Tuning Complete
Unlocking L2 Cache ...Done
AVS_REG_MISC_CONTROL_0 = 0x800003
Fans are driven by full scale voltage
Loading runtime image ... ubi0: attaching mtd1
ubi0: scanning is finished
ubi0: attached mtd1 (name "mtd=2", size 104 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 832, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 1, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 1207/999, WL threshold: 4096,
image sequence number: 1576548397
ubi0: available PEBs: 0, total reserved PEBs: 832,
PEBs reserved for bad PEB handling: 20
Loading file '*rtbootimg' to addr 0x64000000...
Done
## Loading kernel from FIT Image at 64000200 ...
Using 'conf@1' configuration
Trying 'kernel@1' kernel subimage
Description: Broadcom iProc Linux
Type: Kernel Image
Compression: uncompressed
Data Start: 0x640002d4
Data Size: 41927376 Bytes = 40 MiB
Architecture: ARM
OS: Linux
Load Address: 0x61008000
Entry Point: 0x61008000
Hash algo: crc32
Hash value: 1ae231b2
Verifying Hash Integrity ... crc32+ OK
## Loading fdt from FIT Image at 64000200 ...
Using 'conf@1' configuration
Trying 'fdt@1' fdt subimage
Description: Flattened Device Tree blob - bcm956160.dtb
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x667fc698
Data Size: 8010 Bytes = 7.8 KiB
Architecture: ARM
Hash algo: crc32
Hash value: 89fa8671
Verifying Hash Integrity ... crc32+ OK
Booting using the fdt blob at 0x667fc698
Loading Kernel Image ... OK
Using Device Tree in place at 667fc698, end 668015e1
Starting kernel ...
SF: Detected MX25L25635F with page size 256 Bytes, erase size 64 KiB, total 32 MiB
Disabling outer cache
iproc-pcie 18012000.pcie: no PCIe EP device detected
iproc-pcie 18012000.pcie: PCIe controller setup failed
bcmiproc-gmac 18042000.ethernet: can't find MAC address
ubi: mtd2 is already attached to ubi0
Initializing random number generator... done.
Starting network...
Trying to mount custfs on NAND...
DMA pool size: 8388608
Broadcom Command Monitor: Copyright (c) 1998-2021 Broadcom
Release: sdk-6.5.13 built 20211229 (Wed Dec 29 18:05:49 2021)
Platform: IPROC_CMICD
OS: Unix (Posix)
AXI unit 0: Dev 0x8442, Rev 0x11, Chip BCM53442_B0, Driver BCM56160_A0
SOC unit 0 attached to PCI device BCM53442_B0
Configuration init ...
GA-ML16TCPoE+
Product Number: PN261692
Firmware Version: V3.0.0.03
MAC Address: BC:69:CB:0D:**:**
Serial Number: 1CE9900****
UserName:manager
Password:*******
GA-ML16TCPoE+>en
GA-ML16TCPoE+#show version
System MAC Address: BC-69-CB-0D-**-**
Unit ID Module Name Versions
------- ---------------------------- ---------------------
1 GA-ML16TCPoE+ H/W:ES3
Bootloader:V0.1.0.7
Runtime:V3.0.0.03
GA-ML16TCPoE+#show environment
Detail Temperature Status:
Unit Temperature Descr/ID Current/Threshold Range
----- ------------------------------------------------------
1 Thermal Sensor/1 39C/71C
1 Thermal Sensor/2 38C/67C
Status code: * temperature is out of threshold range
Detail Fan Status:
--------------------------------------------------------------
Unit 1:
Back Fan 1 : Speed High
Back Fan 2 : Fail
Back Fan 3 : Speed High
Detail Power Status:
Unit Power Module Power Status
----- ---------------- -------------
1 Power 1 In-operation
GA-ML16TCPoE+#show startup-config
!-------------------------------------------------------------------------------
! GA-ML16TCPoE+ Gigabit Ethernet Switch
! Configuration
!
! Firmware: Build V3.0.0.03
! Copyright(C) 2019 Panasonic. All rights reserved.
!-------------------------------------------------------------------------------
enable
config
!
spanning-tree mst configuration
exit
!
line console
exit
!
line ssh
exit
!
line telnet
exit
!
vlan 1
!
interface GigabitEthernet1/0/1
!
interface GigabitEthernet1/0/2
!
interface GigabitEthernet1/0/3
!
interface GigabitEthernet1/0/4
!
interface GigabitEthernet1/0/5
!
interface GigabitEthernet1/0/6
!
interface GigabitEthernet1/0/7
!
interface GigabitEthernet1/0/8
!
interface GigabitEthernet1/0/9
!
interface GigabitEthernet1/0/10
!
interface GigabitEthernet1/0/11
!
interface GigabitEthernet1/0/12
!
interface GigabitEthernet1/0/13
!
interface GigabitEthernet1/0/14
!
interface GigabitEthernet1/0/15
!
interface GigabitEthernet1/0/16
!
interface GigabitEthernet1/0/17
!
interface GigabitEthernet1/0/18
!
interface GigabitEthernet1/0/19
!
interface GigabitEthernet1/0/20
!
interface Vlan1
exit
!
GA-ML16TCPoE+#
●使用されていた商品ですが、全機能を検証する環境が無い為、それ以上の動作は未確認です。
●「電源が入らない」以外は、現状・ノークレーム扱いでの出品とさせて頂きます。
●電源ケーブル等、付属品は何もありません。
●写真をご参照の上、ご入札のほど、宜しくお願いします。
●送料は下記の「80サイズ」となります。
●運輸業者は当方で決めさせていただきます。
●上記の発送サイズは1台の場合です。複数同時発送の場合の送料はこちらからご連絡いたします。
●中古のダンボールを使用する事より実際の発送サイズが異なる場合がございます。ご了承下さいませ。
●東京都江戸川区西一之江の倉庫にてのお渡しも可能です。
●その場合は、無梱包お渡しとなります。
●営業時間は月曜日～金曜日、AM10:00～PM18:00となります。
●第1.3.5土曜日のみ、11:00～15:00に限り、営業致します。
●第2.4土曜日・日曜日・祝日は休みになります。
●こちらからのご連絡は平日昼間のみとなります。
●また、お取引後の評価ですが不要のお客様が多い為にこちらからは入れておりま
せん。
●評価が必要なお客様は取引メッセージにてのご連絡をお願い致します。
|
