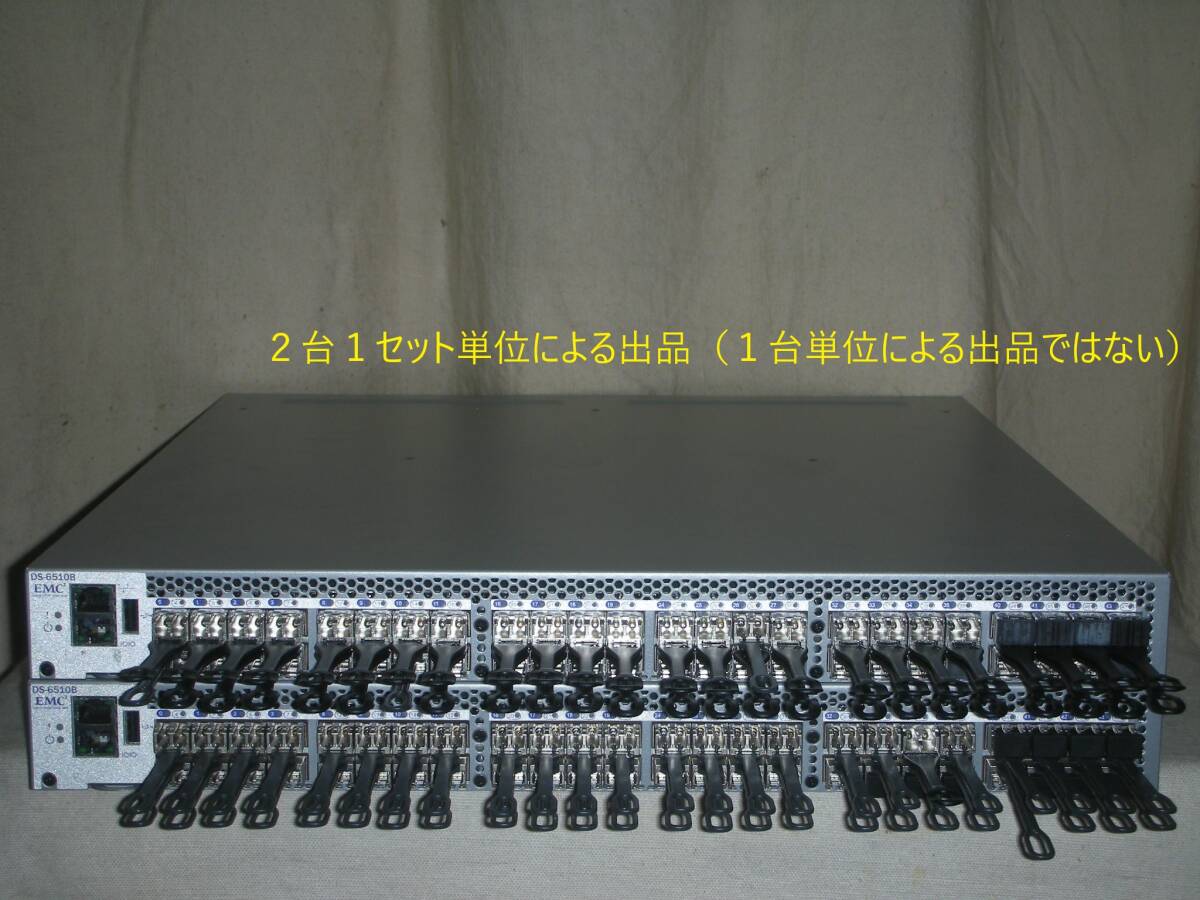

●商品名：EMC DS-6510B [EM-6510-24-16G-R]×2台セット！(#J7-456)です。BROCADE 6510 OEM。
●写真の通りの商品です。
●Login：admin／Password：password。SFP [16GB] ×48個を実装しています。
●Fabric OSはv8.2.0a 並びにv8.2.1aです。同一ではありません。
●どちらもCord Holder無し。多少の擦り傷あり。
●機器起動時は次の状態です。
U-Boot 1.1.3 (Mar 5 2018 - 10:08:18)
CPU: AMCC PowerPC 440EPx Rev. A at 660 MHz (PLB=132, OPB=66, EBC=33 MHz)
No Security/Kasumi support
I2C boot EEPROM enabled
Bootstrap Option G - Boot ROM Location I2C (Addr 0x54)
Internal PCI arbiter enabled, PCI async ext clock used
32 kB I-Cache 32 kB D-Cache
Board: Stinger
I2C: ready
DRAM: Initializing DDRSDRAM
DQS calibration - Window detected:
max_passing_cases = 58
wr_dqs_shift = 85
dll_dqs_delay_X = 31
dll_dqs_delay_X window = 3 - 60
DDR0_09=0x00011d55
DDR0_22=0x0326750b
DDR0_17=0x1f006000
DDR0_18=0x1f1f1f1f
DDR0_19=0x1f1f1f1f
Zeroing SDRAM... DONE
DDR: 1024 MB
POST RAM test disabled.
Now running in RAM - U-Boot at: 3fb26000
trap_init : 0x0
system inventory subsystem initialized
FLASH: Stinger CFI Flash Driver Initialized
4 MB
CPLD:
DEBUG: ASIC Reset Enable Register Offset:0x88 Value:0x03...
CPLD: Reseting Bridge & ASIC...
Init complete
PCI: gd->brcd_flags = 0, PCI init
Skip our host bridge
01 00 1657 001d 0280 1a
00 07 10b5 8112 0604 18
In: serial
Out: serial
Err: serial
Net:
Checking system RAM - press any key to stop test
Checking memory address: 00100000
System RAM test using Default POST RAM Test succeeded.
set_bootstatus: BS_LOAD_OS, platform_idx = 14
Type run flash_nfs to mount root filesystem over NFS
Hit ESC to stop autoboot: 0
Map file at LBA sector 0x1009e0
do_bootm 171: load_addr 0x00100000 addr 0x00400000
do_bootm 174: ## Booting image at 00400000 load_addr 0x00100000 ...
Image Name: Linux-2.6.14.2
Image Type: PowerPC Linux Multi-File Image (uncompressed)
Data Size: 4306459 Bytes = 4.1 MB
Load Address: 00000000
Entry Point: 00000000
Contents:
Image 0: 3227782 Bytes = 3.1 MB
Image 1: 1078663 Bytes = 1 MB
do_bootm_linux 565: ## Current stack ends at 0x3FAE4BA8
=> set upper limit to 0x00C00000
## initrd at 0x007140D4 ... 0x0081B65A (len=1078663=0x107587)
Loading Ramdisk to 1fef8000, end 1ffff587 ... OK
initrd_start = 1fef8000, initrd_end = 1ffff587
## Transferring control to Linux (at address 00000000) ...
Start Autoneg
Installing Linux 2.6 Kernel
Attempting to find a root file system on hda2...
INIT: version 2.78 booting
SWBD109
0
FIPS mode disabled, so skipping firmware integrity check
Bypassing firmware validation.
---------mounting ramfs-------------------
INIT: Entering runlevel: 3
Binding Shell with Loopback address
##### Starting FABOS #####
Enabling FOS failure detection feature
Starting Fabric OS Services...
Loading FOS_LINUX_MISC module
FIPS off, RRD...
Enter trace_initialize
Exit trace_initialize rc=0
fablog module loaded with mtracer!
sys_chip_init: class 0 max 24 Done
ethsw_ha_enabled = 1
starting ipadmd...
uptime: 4293889757; sup_qid: 0
.
ham_post_message:HAM_SCN_GO_ACTIVE
Hasm HAM_SCN_GO_Active - take ovplatform_take_control done,
on Active role nower
ham_post_message:HAM_SCN_GO_ACTIVE
2025/06/23-20:07:00, [HAM-1004], 176419, CHASSIS, INFO, DS_6510B,
Processor rebooted - Reboot.
Fabric OS (Switch)
Switch console login: bootenv: Could not get requested variable bootargs.
2025/06/23-20:07:12, [FV-1001], 176420, CHASSIS, INFO,
Switch, Flow Vision daemon initialized.
SNMP Research EMANATE/Lite Agent Version 16.2.0.9
Copyright 1989-2006 SNMP Research, Inc.
Multi Area table created !!fss_scm_post_image:fcsw(2):Image complete,
ready for sync dump ki_state_set: redundant ACTIVATE for instance 1
2025/06/23-20:07:40, [FCR-1069], 176421, FID 128, INFO, Switch,
The FC Routing service is enabled.
2025/06/23-20:07:40, [FCR-1068], 176422, FID 128, INFO, Switch,
The FC Routing service is disabled.
2025/06/23-20:07:42, [ZONE-1022], 176423, FID 128, INFO, Switch,
The effective configuration has changed to d__efault__Cfg.
2025/06/23-20:07:42, [MFIC-1002], 176424, FID 128, INFO, Switch,
Chassis FRU header not programmed for switch NID, using defaults
(applies only to FICON environments).
hasm_process_scn:HAM_SCN_GO_ACTIVEJun 23 20:07:43 All service instances on Active
2025/06/23-20:07:44, [FV-1002], 176425, FID 128, INFO, Switch,
Flow Vision Config Replay Completed Successfully.
2025/06/23-20:07:45, [MAPS-1201], 176426, FID 128, INFO, Switch,
MAPS has started monitoring with dflt_base_policy policy.
POST1: started running Mon Jun 23 20:07:48 JST 2025
POST1:Mon Jun 23 20:07:50 JST 2025: Test #1 - Running Turboramtest
POST1: Script PASSED with exit status of 0 Mon Jun 23 20:08:06 JST 2025 took (0:0:18)
POST2: started running Mon Jun 23 20:08:08 JST 2025
POST2:Mon Jun 23 20:08:09 JST 2025: Test #1 - Running portloopbacktest
POST2: Test #1: portloopbacktest -lb_mode 2 Status:
PASSED exit_status 0 Mon Jun 23 20:08:43 JST 2025 took (0:0:35)
POST2: Script PASSED with exit status of 0 Mon Jun 23 20:08:43 JST 2025 took (0:0:35)
2025/06/23-20:08:45, [BL-1000], 176427, CHASSIS, INFO, DS_6510B, Initializing ports...
2025/06/23-20:08:45, [BL-1001], 176428, CHASSIS, INFO, DS_6510B,
Port initialization completed.
Fabric OS (Switch)
Switch console login: admin
Password:
==========================================================
ATTENTION:
It is recommended that you change the default passwords for all the switch accounts.
Refer to the product release notes and administrators guide
if you need further information.
==========================================================
-----------------------------------------------------------------
Please change passwords for switch default accounts now.
Use Control-C to exit or press 'Enter' key to proceed.
Password was not changed. Will prompt again at next login
until password is changed.
Switch:admin> switchshow
switchName: Switch
switchType: 109.1
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 1
switchId: fffc01
switchWwn: 10:00:88:94:71:0f:**:**
zoning: OFF
switchBeacon: OFF
FC Router: OFF
FC Router BB Fabric ID: 1
Address Mode: 0
HIF Mode: OFF
Index Port Address Media Speed State Proto
==================================================
0 0 010000 id N16 No_Light FC
1 1 010100 id N16 No_Light FC
2 2 010200 id N16 No_Light FC
3 3 010300 id N16 No_Light FC
4 4 010400 id N16 No_Light FC
5 5 010500 id N16 No_Light FC
6 6 010600 id N16 No_Light FC
7 7 010700 id N16 No_Light FC
8 8 010800 id N16 No_Light FC
9 9 010900 id N16 No_Light FC
10 10 010a00 id N16 No_Light FC
11 11 010b00 id N16 No_Light FC
12 12 010c00 id N16 No_Light FC
13 13 010d00 id N16 No_Light FC
14 14 010e00 id N16 No_Light FC
15 15 010f00 id N16 No_Light FC
16 16 011000 id N16 No_Light FC
17 17 011100 id N16 No_Light FC
18 18 011200 id N16 No_Light FC
19 19 011300 id N16 No_Light FC
20 20 011400 id N16 No_Light FC
21 21 011500 id N16 No_Light FC
22 22 011600 id N16 No_Light FC
23 23 011700 id N16 No_Light FC
24 24 011800 id N16 No_Light FC
25 25 011900 id N16 No_Light FC
26 26 011a00 id N16 No_Light FC
27 27 011b00 id N16 No_Light FC
28 28 011c00 id N16 No_Light FC
29 29 011d00 id N16 No_Light FC
30 30 011e00 id N16 No_Light FC
31 31 011f00 id N16 No_Light FC
32 32 012000 id N16 No_Light FC
33 33 012100 id N16 No_Light FC
34 34 012200 id N16 No_Light FC
35 35 012300 id N16 No_Light FC
36 36 012400 id N16 No_Light FC
37 37 012500 id N16 No_Light FC
38 38 012600 id N16 No_Light FC
39 39 012700 id N16 No_Light FC
40 40 012800 id N16 No_Light FC
41 41 012900 id N16 No_Light FC
42 42 012a00 id N16 No_Light FC
43 43 012b00 id N16 No_Light FC
44 44 012c00 id N16 No_Light FC
45 45 012d00 id N16 No_Light FC
46 46 012e00 id N16 No_Light FC
47 47 012f00 id N16 No_Light FC
Switch:admin> licenseshow
mgZTSJaYJatTBW4FY4JfLKGtAYQXfHaKBSFXJ:
Second Ports on Demand license - additional 12 port upgrade license
ACmRaBQXmfmfgPAJZ3M7WSm3EMDXY7F7BJ49L:
Full Ports on Demand license - additional 24 port upgrade license
Switch:admin> version
Kernel: 2.6.14.2
Fabric OS: v8.2.*a
Made on: Wed Mar 7 03:53:53 2018
Flash: Thu Sep 5 12:25:57 2019
BootProm: 1.0.11
Switch:admin> sfpshow
Port 0: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 1: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 2: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 3: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 4: id (sw) Vendor: BROCADE Serial No: HAA32029100**** Speed: 4,8,16_Gbps
Port 5: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 6: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 7: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 8: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 9: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 10: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 11: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 12: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 13: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 14: id (sw) Vendor: BROCADE Serial No: HAA32029100**** Speed: 4,8,16_Gbps
Port 15: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 16: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 17: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 18: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 19: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 20: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 21: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 22: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 23: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Port 24: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 25: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 26: id (sw) Vendor: BROCADE Serial No: HAA42233D02**** Speed: 4,8,16_Gbps
Port 27: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 28: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 29: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 30: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 31: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 32: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 33: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 34: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 35: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 36: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 37: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 38: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 39: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 40: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 41: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 42: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 43: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 44: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 45: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 46: id (sw) Vendor: BROCADE Serial No: HAF31745000**** Speed: 4,8,16_Gbps
Port 47: id (sw) Vendor: BROCADE Serial No: HAF31746000**** Speed: 4,8,16_Gbps
Switch:admin> diagshow
Diagnostics Status:
Mon Jun 23 20:10:52 2025
Slot: 0 UPORTS
Port BPort Diag Active Speed FrTX FrRX LLI Errs Loopback
0/0 0 OK DN 16G Auto -- -- --
0/1 5 OK DN 16G Auto -- -- --
0/2 2 OK DN 16G Auto -- -- --
0/3 7 OK DN 16G Auto -- -- --
0/4 1 OK DN 16G Auto -- -- --
0/5 4 OK DN 16G Auto -- -- --
0/6 3 OK DN 16G Auto -- -- --
0/7 6 OK DN 16G Auto -- -- --
0/8 12 OK DN 16G Auto -- -- --
0/9 9 OK DN 16G Auto -- -- --
0/10 14 OK DN 16G Auto -- -- --
0/11 11 OK DN 16G Auto -- -- --
0/12 8 OK DN 16G Auto -- -- --
0/13 13 OK DN 16G Auto -- -- --
0/14 10 OK DN 16G Auto -- -- --
0/15 15 OK DN 16G Auto -- -- --
0/16 21 OK DN 16G Auto -- -- --
0/17 18 OK DN 16G Auto -- -- --
0/18 23 OK DN 16G Auto -- -- --
0/19 16 OK DN 16G Auto -- -- --
0/20 20 OK DN 16G Auto -- -- --
0/21 17 OK DN 16G Auto -- -- --
0/22 22 OK DN 16G Auto -- -- --
0/23 19 OK DN 16G Auto -- -- --
0/24 43 OK DN 16G Auto -- -- --
0/25 46 OK DN 16G Auto -- -- --
0/26 41 OK DN 16G Auto -- -- --
0/27 44 OK DN 16G Auto -- -- --
0/28 40 OK DN 16G Auto -- -- --
0/29 47 OK DN 16G Auto -- -- --
0/30 42 OK DN 16G Auto -- -- --
0/31 45 OK DN 16G Auto -- -- --
0/32 39 OK DN 16G Auto -- -- --
0/33 34 OK DN 16G Auto -- -- --
0/34 37 OK DN 16G Auto -- -- --
0/35 32 OK DN 16G Auto -- -- --
0/36 35 OK DN 16G Auto -- -- --
0/37 38 OK DN 16G Auto -- -- --
0/38 33 OK DN 16G Auto -- -- --
0/39 36 OK DN 16G Auto -- -- --
0/40 30 OK DN 16G Auto -- -- --
0/41 27 OK DN 16G Auto -- -- --
0/42 28 OK DN 16G Auto -- -- --
0/43 25 OK DN 16G Auto -- -- --
0/44 31 OK DN 16G Auto -- -- --
0/45 26 OK DN 16G Auto -- -- --
0/46 29 OK DN 16G Auto -- -- --
0/47 24 OK DN 16G Auto -- -- --
Total Diag Frames Tx: 0
Total Diag Frames Rx: 0
Switch:admin> chassisshow
FAN Unit: 1
Fan Direction: Reverse (Non-portside Intake)
Time Awake: 0 days
FAN Unit: 2
Fan Direction: Reverse (Non-portside Intake)
Time Awake: 0 days
POWER SUPPLY Unit: 1
Power Source: AC
PS Voltage input: Not Available
Time Awake: 0 days
POWER SUPPLY Unit: 2
Power Source: AC
PS Voltage input: Not Available
Time Awake: 0 days
CHASSIS/WWN Unit: 1
Header Version: 2
Factory Part Num: 40-1000569-13
Factory Serial Num: BRW1949****
Manufacture: Day: 10 Month: 11 Year: 2017
Update: Day: 20 Month: 4 Year: 2025
Time Alive: 2570 days
Time Awake: 0 days
ID: EMC0000
Part Num: CONTRX0000
Serial Num: BRCBRW1949****
Switch:admin> chassisname
DS_6510B
Switch:admin>
●使用されていた商品ですが、全機能を検証する環境が無い為、それ以上の動作は未確認です。
●「電源が入らない」以外は、現状・ノークレーム扱いでの出品とさせて頂きます。
●電源ケーブル等、付属品は何もありません。
●写真をご参照の上、ご入札のほど、宜しくお願いします。
●送料は下記の「140サイズ」（2台1セット）となります。
●運輸業者は当方で決めさせていただきます。
●上記の発送サイズは2台1セットの場合です。複数同時発送の場合の送料はこちらからご連絡いたします。
●中古のダンボールを使用する事より実際の発送サイズが異なる場合がございます。ご了承下さいませ。
●東京都江戸川区西一之江の倉庫にてのお渡しも可能です。
●その場合は、無梱包お渡しとなります。
●営業時間は月曜日～金曜日、AM10:00～PM18:00となります。
●第1.3.5土曜日のみ、11:00～15:00に限り、営業致します。
●第2.4土曜日・日曜日・祝日は休みになります。
●こちらからのご連絡は平日昼間のみとなります。
●また、お取引後の評価ですが不要のお客様が多い為にこちらからは入れておりま
せん。
●評価が必要なお客様は取引メッセージにてのご連絡をお願い致します。
|
![☆SFP [16GB] ×48個付き！2台セット！48port Active／EMC DS-6510B [EM-6510-24-16G-R]・BROCADE 6510！(#J7-456)「140サイズ」☆ 拍卖](http://yahooimg2.ymibuy.cn/i/auctions.c.yimg.jp/images.auctions.yahoo.co.jp/image/dr000/auc0109/user/40897b8a5350d507c506e436ed848f2b357773739c6b9e0a27ce9d27f66f480d/i-img1200x900-17589570160445jexiye7854.jpg)
![{$data['title']拍卖](http://yahooimg2.ymibuy.cn/i/auctions.c.yimg.jp/images.auctions.yahoo.co.jp/image/dr000/auc0109/user/40897b8a5350d507c506e436ed848f2b357773739c6b9e0a27ce9d27f66f480d/i-img1200x900-17589570181476ffbpcu78996.jpg)
![{$data['title']拍卖](http://yahooimg2.ymibuy.cn/i/auctions.c.yimg.jp/images.auctions.yahoo.co.jp/image/dr000/auc0109/user/40897b8a5350d507c506e436ed848f2b357773739c6b9e0a27ce9d27f66f480d/i-img900x1200-17589570215163wq7g7n17395.jpg)
